Correcting the Weight-Space Map: Three Bugs and a Cleaner Picture
Errata and follow-up to the Gemma-2 attention-head map
The first post built a weight-space map of Gemma-2-2B attention heads – routing (W_Q/W_K), writing (W_O/W_V), and feature programs – in a fixed SAE coordinate system, and validated those weight-space predictions against real attention on a handful of prompts. The headline structure held up well in early and middle layers, then appeared to invert in late layers: weight-space predictions went anti-correlated with real attention past about L17. I called that the third of three depth regimes.
That regime was not real. While building follow-up experiments I found three bugs in the pipeline, each small in code and large in consequence. After fixing them and re-running the full 26-layer analysis, the late-layer inversion disappears, every layer is solidly predictive, and two of the original post’s sharper claims need softening. The good news: the core method works better than the first post reported, and two new diagnostics fell out of the cleanup.
These are lab notes on what broke, what the corrected map says, and what I now believe about how load-bearing the SAE dictionary actually is.
Code – the fixes live in weight_extraction.py, rope_utils.py, and activation_validation.py, each now guarded by a parity test (test_gamma_folding.py, test_rope_parity.py). Corrected run: analysis_20260610_233407.json.
- Three bugs – RMSNorm gamma folding (missing the +1), RoPE pairing convention (interleaved vs rotate-half), and validating against the wrong activations – corrupted the published numbers.
- There is no late-layer anti-predictive regime. It was an artifact. After the fixes, mean Spearman \rho between predicted and real attention rises from +0.011 (noise) to +0.229 across all 26 layers, every layer positive, with 100% sign stability. The old “Regime 3” is retracted.
- The Layer-6 selectivity spike survives but is no longer unique – L8, L12, L14, and L22 sit in the same band. The identity/copy-routing peak actually lives at L10, not L6.
- New: the L13 oddity is a Gemma Scope checkpoint problem, not a model problem – a dictionary-free basis predicts L13 fine while the SAE fails.
- New: a mean-centered token-embedding basis with no SAE validates slightly better overall (0.260 vs 0.229) and wins 15/26 layers. For routing, the SAE dictionary is not load-bearing.
- The L23 causal result stands (ablation still helps retrieval +6.2 pts) but its explanation changes: L23H0 is well-predicted now, so “the map can’t see this head” is wrong.
The three bugs
All three are convention mismatches with Hugging Face’s Gemma-2 implementation. None changed the shape of the method; all changed the numbers.
1. RMSNorm gamma folding missed the +1
I fold the pre-attention RMSNorm gain into the projection weights so the SAE basis lives in the right coordinate system. HF’s Gemma2RMSNorm computes
y = \frac{x}{\operatorname{rms}(x)}\,(1 + \gamma),
but the pipeline folded W \cdot \gamma instead of W \cdot (1 + \gamma). Gemma’s learned \gamma values are small, so this multiplied every folded weight by roughly \gamma instead of roughly 1 – a large, layer-dependent distortion of every B matrix and every selectivity number in the first post. Per-layer cosine similarity between the legacy and corrected B matrices ranges from 0.71 at L0 to 0.97 deeper in the stack.
The fix is one term, but it touches everything, so it is now pinned by an algebraic parity test (test_gamma_folding.py) that checks q_\text{proj}(\text{RMSNorm}(x)) = (x/\operatorname{rms}(x))\,W_\text{folded}^\top to relative error < 10^{-4}, and prints the legacy cosine per layer so the bug magnitude is reproducible.
2. RoPE pairing convention
The weight-space routing analysis rotates queries and keys analytically rather than sampling positions. I had assumed RoPE pairs interleaved dimensions (2i, 2i{+}1); HF Gemma-2 uses the rotate-half convention, pairing (i,\, i + d/2) with d=256. The two conventions agree on a scalar dot product only by accident, so this quietly corrupted every RoPE stability curve and the distance-binned validation.
Working the logit out from first principles, \text{logit}(t,s) = q^\top R(-\Delta)\, k with \Delta = t - s, so the key must be rotated by -\Delta. The rewrite is checked against HF’s own apply_rotary_pos_emb (test_rope_parity.py, max diff < 10^{-3}), with the old interleaved formula kept as a negative control that differs by one to two orders of magnitude – so the test cannot pass by tautology. Under the corrected rotation, RoPE-stability AUCs rise everywhere (0.63–0.73 pre-fix to 0.65–0.89 fixed; peaks at L22 = 0.89, L14 = 0.88, L8 = 0.87).
3. Validation encoded the wrong activations
The first post’s validation compared weight-space predictions against SAE encodings of post-layernorm activations. But the Gemma Scope residual SAEs are trained on the raw residual stream, not the normalized one, and the mismatch between the two grows with depth – which is exactly the shape of the spurious late-layer inversion. The fix captures the raw block input via a forward_pre_hook, encodes it with per-token 1/\operatorname{rms} scaling, and keeps the (1+\gamma) factor in the weights where it belongs. Key sampling is now seeded per head so before/after comparisons are clean A/Bs rather than re-rolls.
Retraction: there is no anti-predictive regime

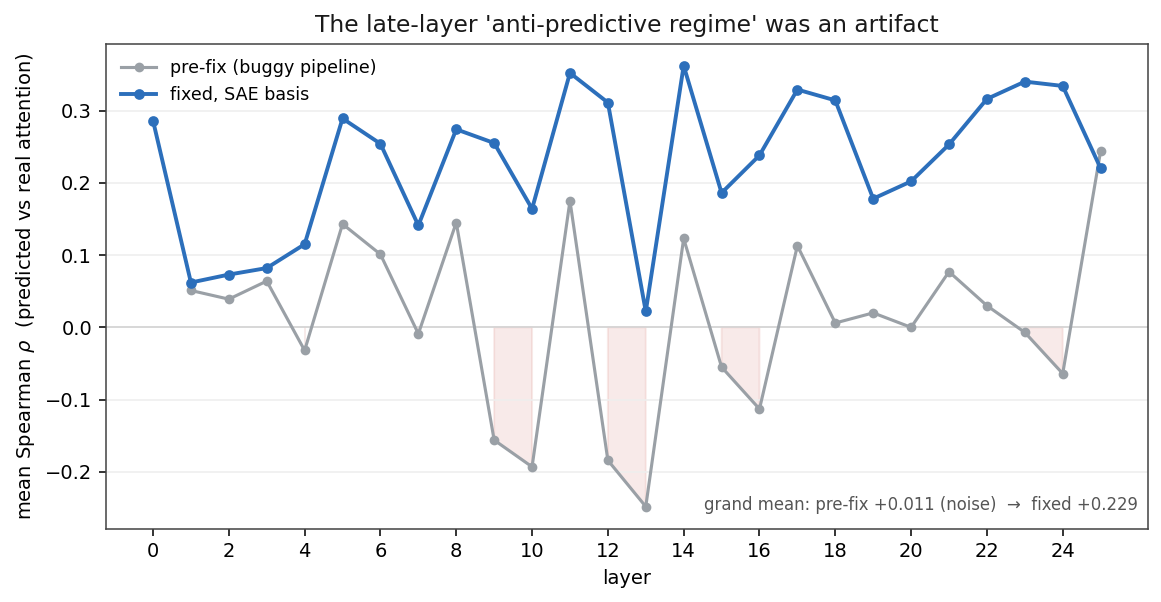

This is the big one. Here is the per-layer mean Spearman \rho between weight-space predicted attention and real attention (all 8 query heads, 20 prompts), pre-fix versus the corrected pipeline in two bases:
| layer | pre-fix | fixed (SAE) | fixed (token) |
|---|---|---|---|
| 5 | 0.143 | 0.289 | 0.176 |
| 9 | -0.156 | 0.255 | 0.375 |
| 10 | -0.193 | 0.164 | 0.351 |
| 12 | -0.184 | 0.311 | 0.329 |
| 13 | -0.248 | 0.022 | 0.377 |
| 16 | -0.113 | 0.238 | 0.379 |
| 24 | -0.064 | 0.334 | 0.327 |
| 25 | 0.244 | 0.220 | 0.288 |
The grand means tell the story: pre-fix +0.011 (statistical noise), fixed SAE basis +0.229, fixed token basis +0.260. Every layer the first post labelled anti-predictive – L9, L10, L12, L13, L16, L24 – is solidly positive after the fixes, with 100% sign stability across heads. Best single heads reach \rho = 0.50 overall (L11H3) and \rho = 0.63 on local distances (L6H0).
Regime 3 is retracted. The first post’s “three depth regimes” framing had a real early/transport regime and a real mid-stack routing band, but the third “late-layer anti-predictive” regime was entirely an artifact of bug #3 interacting with depth. There is no regime where the weight map stops working.
The Layer-6 spike survives, its uniqueness does not
The first post made a lot of a Layer-6 selectivity spike that appeared to tower roughly 105\times over a uniform baseline – two orders of magnitude above everything else. The spike is real, but the contrast was inflated by the gamma bug. Corrected selectivity (\text{Sel}\times\text{U}, top-1 softmax mass over uniform): L6 still peaks globally at 1451, but L8 (1176), L22 (1113), L12 (866), and L14 (912) sit in the same band, all 3–25\times above a random-weights baseline. The corrected story is a band of selective layers from L6 to L14 plus a late peak at L22 – not a lone spike.

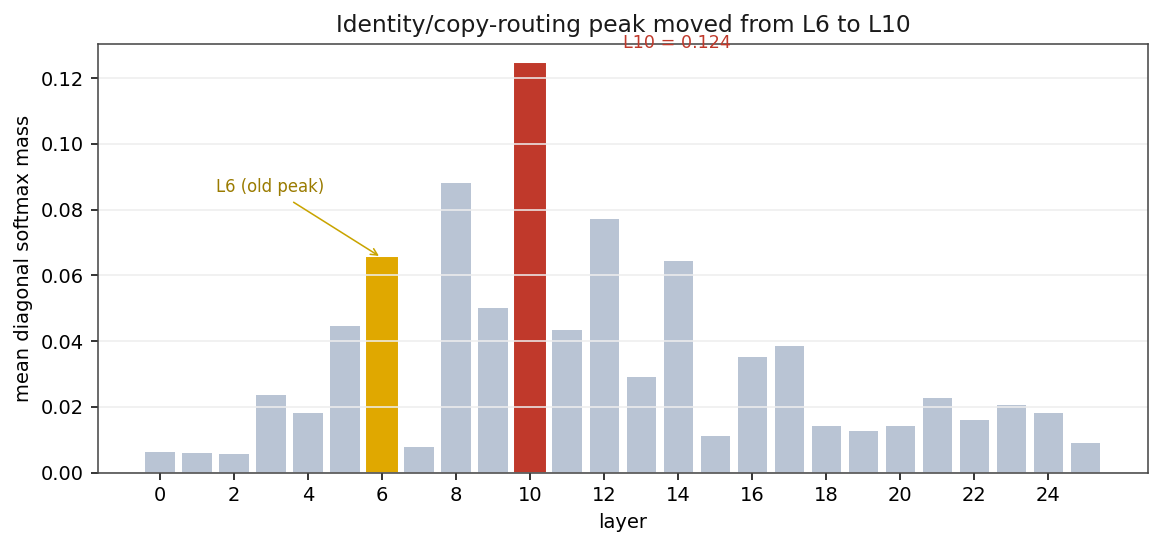

And the identity/copy-routing peak – the diagonal mass of the routing matrix – isn’t even at L6. It’s at L10:
New: the L13 anomaly is an SAE checkpoint issue
L13 is the one layer where the corrected SAE-basis validation still fails (mean \rho = 0.022). That looked alarming until I probed the same layer three ways:
| probe | mean Spearman (8 heads) |
|---|---|
| layer-12 SAE (standard -1 offset, conceptually correct tap) | +0.022 |
| layer-13 SAE (offset 0, conceptually misaligned tap) | +0.176 |
| token-embedding basis (no SAE) | +0.377 |
The conceptually correct SAE is the worst of the three, and the dictionary-free basis is the best. So attention at L13 is well-predicted by weight space – the gemma-scope-2b-pt-res layer-12 canonical 16k checkpoint is just a poor dictionary for this purpose. The practical lesson: basis disagreement is a diagnostic. When three reasonable bases disagree this sharply on one layer, suspect the dictionary, not the model. Any SAE analysis leaning on that particular checkpoint deserves a second look.
New: a dictionary-free basis is competitive

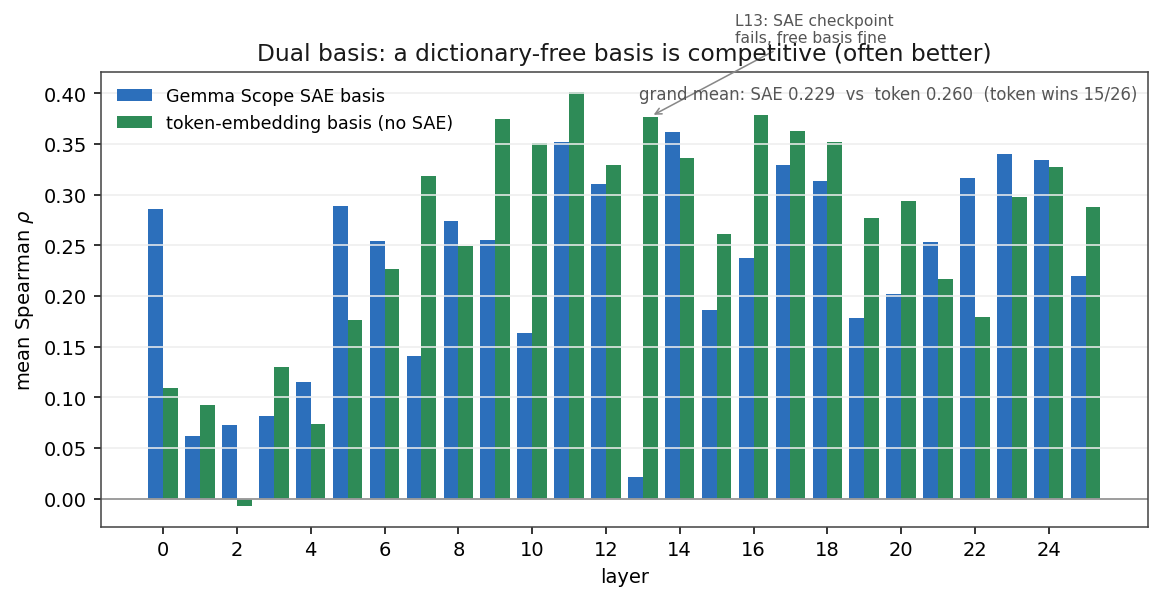

That L13 result generalizes. I re-ran the whole validation using a mean-centered token-embedding matrix as the probe basis – no SAE at all – and it validates slightly better overall than the Gemma Scope SAEs:
Grand mean: token 0.260 vs SAE 0.229, with the token basis winning 15/26 layers. The SAE wins at L0, the L5–L6 selectivity band, and L21–L24. The honest reading is uncomfortable for the original framing: for routing analysis, the SAE dictionary is not load-bearing. A free, interpretable-enough basis does as well or better through most of the stack. The SAE earns its keep where you want named features for the OV/writing story, not for predicting where attention goes.
The L23 causal result, re-explained
The first post’s one causal experiment – ablating individual Layer-23 heads on a factual-retrieval task – still replicates: removing L23H0 improves accuracy by +6.2 points (0.595 to 0.657, 800 prompts; L23H2 gives +3.2). That finding stands.
What does not stand is the explanation. The first post tied the improvement to the late-layer anti-predictive regime – “the map flagged a high-leverage layer but couldn’t read its sign.” Under the corrected map, L23H0 is well-predicted (overall \rho = 0.32, local 0.57), so the map can see it. The corrected read of what L23H0 is: a REPULSION routing archetype (strong negative affinities, min \approx -37) wearing a high copy-dominance OV circuit (copy_dominance = 0.95). A head that copies content under repulsion-shaped routing plausibly drags non-answer context into the final residual on cluttered prompts – consistent with ablation helping on a filler-heavy retrieval task. Prediction quality and causal helpfulness are orthogonal; the first post conflated them. Independent corroboration that L23 is special: instruction tuning moves L23H0/H1 more than almost any other heads in the model (base vs -it weight diff).
What I’d take away
- Pin your conventions with parity tests. All three bugs were silent agreements-by-accident with HF that only a direct numeric cross-check exposes. The two parity tests now make these regressions loud.
- A negative result on a basis is a result about the basis. The L13 “failure” was the most informative single layer once I stopped assuming the SAE was ground truth.
- Don’t over-credit the dictionary. For routing geometry, a dictionary-free basis matched or beat Gemma Scope across most of the stack. SAEs are still the right tool for naming what a head writes – just not for deciding whether the weight map can predict attention at all.
One pipeline-health caveat for circuit claims: 21.6% of feature programs in the full-depth run used a fallback self-write injection, so the explicit-only program histogram is the trustworthy one. Full corrected numbers, all 26 layers, and the dual-basis breakdown are in errata_full_depth.md alongside the code.
Appendix: full table
The complete per-layer Spearman table (pre-fix, fixed SAE, fixed token) for all 26 layers, plus the corrected selectivity, RoPE-stability AUC, and dual-basis per-layer winners, is in errata_full_depth.md with the accompanying run JSON. The figures above are generated from analysis_20260610_233407.json and the 20-prompt validation outputs.
